Albins STX: Six-speed sequential designed for extreme use, AWD capable.

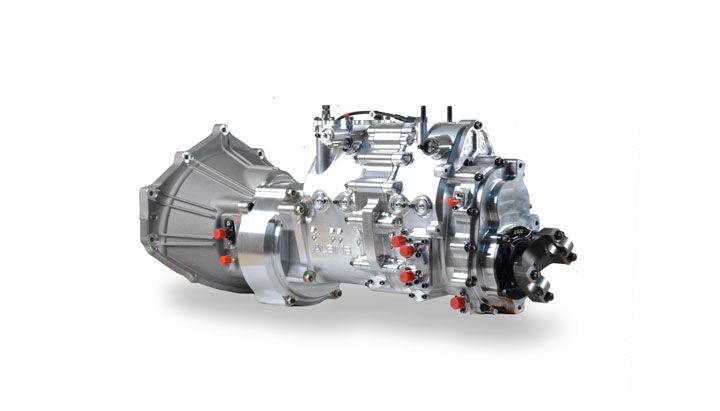

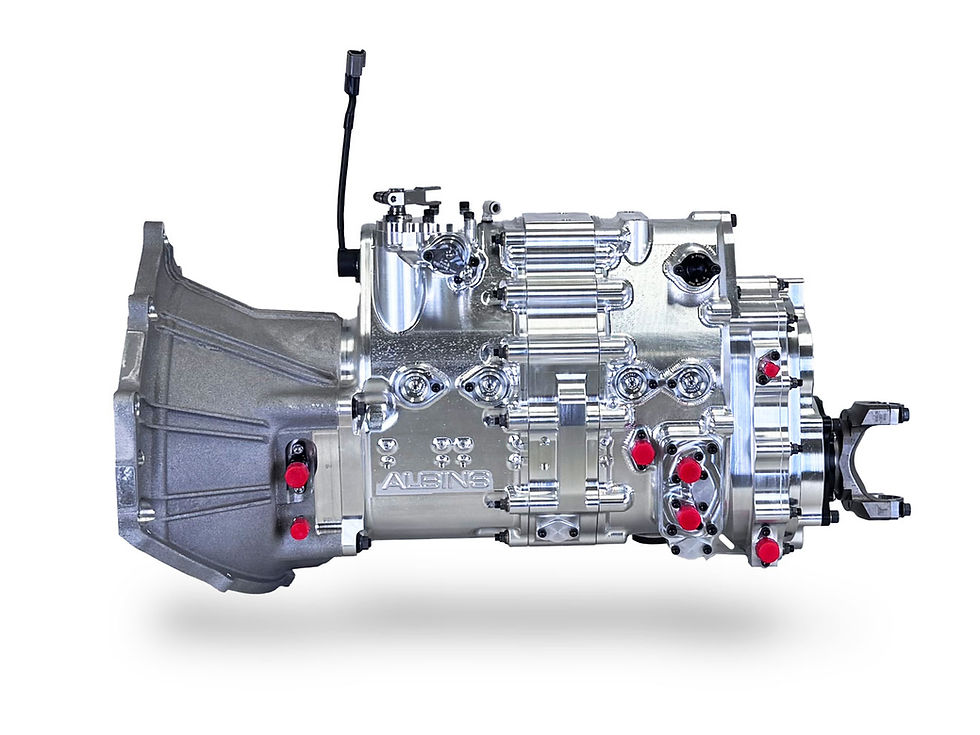

The Albins STX Edition is an inline 6-speed sequential gearbox built to handle the extreme demands of off-road racing. Based on the revolutionary Albins ST6, STX gearboxes feature six extra-wide, close-ratio 28mm forward gears. An extra-long torsional input shaft helps reduce shock loads. Albins STX gearboxes are available with a torque converter only, or with a clutch plus converter kit.

---

Learn more about Albins STX Off Road Edition Gearboxes.

---

4WD/AWD capable. The Albins STX Off-Road Edition can be configured with a transfer case and the Albins wet clutch assembly for the front output for an AWD capable transmission. Add in the Albins AFD-100 front differential and the drivetrain package is ready for AWD.

2025 AORC Champion and back to back Tatts Finke Desert Race winner Travis Robinson

Like the Albins ST6 gearboxes, heavy duty Albins STX Editions feature drop gears for quick ratio changes. All gears are profile ground after heat treatment, shot peened and isotropic finished for longer life. Built-in inspection ports allow visual check of gear and dog wear.

Albins STX features:

• Extra-wide 28mm straight cut drive gears

• Billet aluminum housings

• 1480 output yoke

• Drop gears for overall ratio changes, gear reduction allows for stronger rear gears

• Internal oil pump

• Flexible configurations include 4WD systems with offset outputs

• Manual or Paddle shift options

• Front drive clutch assemblies available

• Does not include bell housing

• Available with clutch, converter, or both

Photo: Courtesy of Robinson Racing

---

For pricing and more information, call +61 3 5335 8022

---
